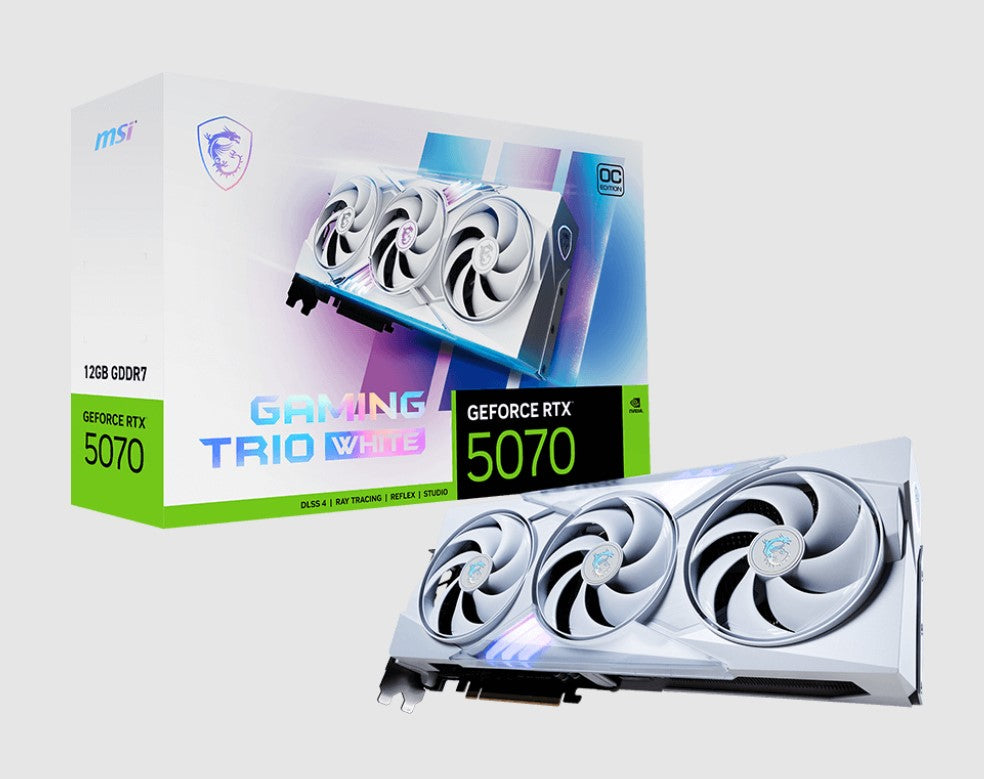

MSI nVidia GeForce RTX™ 5070 12G GAMING TRIO OC WHITE,PCI Express® Gen 5, Boost: 2610 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1

MSI nVidia GeForce RTX™ 5070 12G GAMING TRIO OC WHITE,PCI Express® Gen 5, Boost: 2610 MHz, CUDA 6144 Units, 12GB GDDR7, HDMI™ x 1

SPECIFICATIONS

Marketing Name GeForce RTX™ 5070 12G GAMING TRIO OC WHITE
Model Name G5070-12GTCW
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070
Interface PCI Express® Gen 5
Core Clocks Extreme Performance: 2625 MHz (MSI Center)
Boost: 2610 MHz
CUDA® CORES 6144 Units
Memory Speed 28 Gbps
Memory 12GB GDDR7
Memory Bus 192-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 250 W
Power connectors 16-pin x 1
Recommended PSU 650 W
Card Dimension (mm) 338 x 140 x 50 mm
Weight (Card / Package) 1187 g / 1705 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

TRI FROZR 4
Upgraded fans, airflow control, and thermal design deliver
superior cooling and quieter operation.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.
Metal Backplate
A reinforcing metal backplate with airflow vents and thermal pads
enhances cooling.
Wave Curved 4.0
Precision-engineered wave edges with a high-low fin design
enhance airflow and reduce turbulence.
Air Antegrade Fin 2.0
The fins feature a V-shaped cutout and a high-low design at the
airflow passthrough to optimize flow efficiency.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
