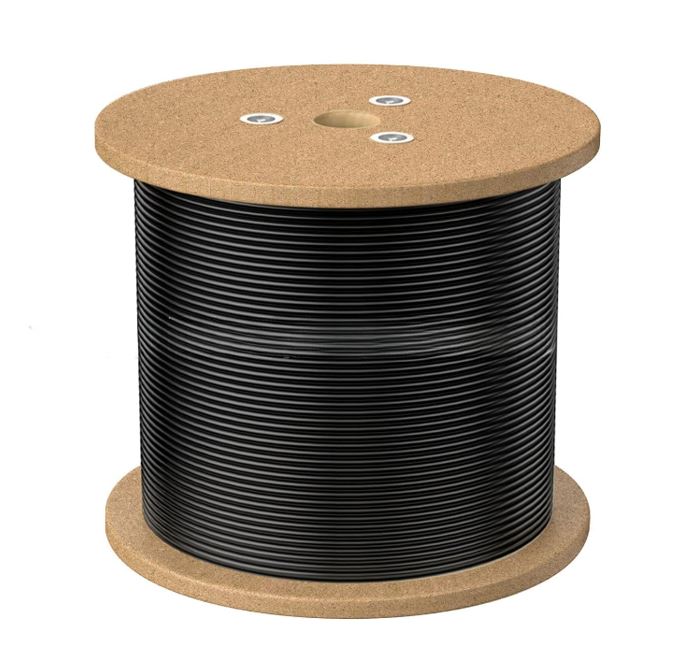

CAT6A cables support networking at gigabit speeds and are backwards compatible with CAT5E cables. Colour coded black for immediate and easy identification.
-UTP Cable
-24AWG(1/0.508BC)*4P(Conductor OD:0.90mm) & Cross
-OD:6.2MM
-Black 3C shining & white printing text
-N121017 UTP CAT.6A NETWORK CABLE
-ISO/IEC 11801
CABLE SPECIFICATIONS
ï§ Cable Type: Cat6A
ï§ Connectors: Un-terminated
ï§ Length: 350m
ï§ Colour: Black
ï§ Jacket Material: PVE
ï§ Insulation Material: HDPE
ï§ Diameter: Nominal 7.4mm
FEATURES
ï§ Unterminated
ï§ Bare Copper / 24AWG
ï§ Impedance Matched - Wire and connectors are carefully matched to virtually eliminate echoing and cancellation, providing high speed, error-free transmission
ï§ 24AWG Bare Copper Conductors
ï§ Metre marked Black UV stabilised jacket
COMPLIANCES
ï§ All Proposed Category 5e requirements as per ANSI/TIA, ISO/IEC Standards
ï§ ANSI/TIA 568-C.2 CAT.6A and ISO/IEC 11801 CLASS E, 2nd Edition
ï§ RoHS compliant for the requirement of European Union issued Directive 2011/65/EU
APPLICATIONS
ï§ General Outdoor Application
ï§ 1000BASE-T Gigabit Ethernet
ï§ 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
ï§ 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
ï§ 500MHz Broadband Video
ï§ Voice, T1, ISDN
WARRANTY
ï§ 3-year limited warranty.
PACKAGING DIMENSIONS
ï§ Weight:13KG
ï§ Dimensions: 33x33x30cm
