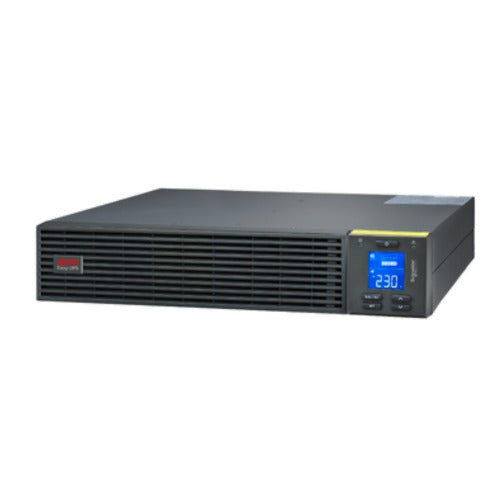

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV201. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Main input voltage
230 V AC 1 phase
Other input voltage
220 V
240 V
Input connection
IEC 60320 C14
Efficiency at full load
110...285 V 40% load
180...285 V full load
Input frequency
40...70 Hz auto sensing
Output voltage
230 V AC 1 phase
Other output voltage
220 V
240 V
Rated power in W
1800 W
Rated power in VA
2000 VA
Output connection
4 IEC 60320 C13
Bypass type
Internal bypass (automatic and manual)
Crest factor
3 : 1
Harmonic distortion
3 %
Maximum configurable power in VA
2000 VA
Maximum configurable power in W
1800 W
UPS topology
On-Line
Waveform type
Sine wave
Efficiency
88 % (full load)
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Replacement battery
APCRBCV201
Graphs
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Complementary
Additional information
Configurable for 220 : 230 or 240 nominal output voltage
Battery type
Lead-acid internal included
Control panel
Multifunction LCD status and control console
Free slot
1
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity
Serial port
USB port
Available expansion slot
Surge energy rating
945 J
Number of rack unit
2U
Cable length
1.5 m
Number of cables
1
Color
Black (RAL 7010)
Height
86 mm
Width
438 mm
Depth
462 mm
Product weight
18.8 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
USB compatible
Yes
Mounting position
Horizontal
Mounting mode
Rack-mounted with included kit
Max runtime
3 min
Number of power module filled slots
0
Number of power module free slots
0
Redundant
No
Range of product
Easy UPS On-Line
Product or component type
Uninterruptible power supply (UPS)
Environment
Product certification
CE
UKCA
TISI
Standard
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-20…50 °C
Storage altitude
0…15000 m
IP protection
IP20
Relative humidity
0…95 % non-condensing
Storage relative humidity
0…95 % non-condensing
Acoustic level
50 dBA
Heat dissipation
759 Btu/h
Operating altitude
0...3000 m
Batteries & Runtime
Battery type
Lead-acid battery
Battery voltage
48 V
Extendable runtime
0
Included battery module
0
Empty battery slot
0
Typical recharge time
4 h
Battery life
3…5 year(s)
Battery charging power
70 W rated
Battery power in VAh
367 VAh runtime
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
42.000 cm
Package 1 Width
60.000 cm
Package 1 Length
80.000 cm
Package 1 Weight
30.990 kg
Contractual warranty
Warranty (in months)
24

Mounting mode- Rac -mounted
Replacement Battery - APCRBCV201
Compatible NMC- AP9544, SRVSMB001, VGL9901I
