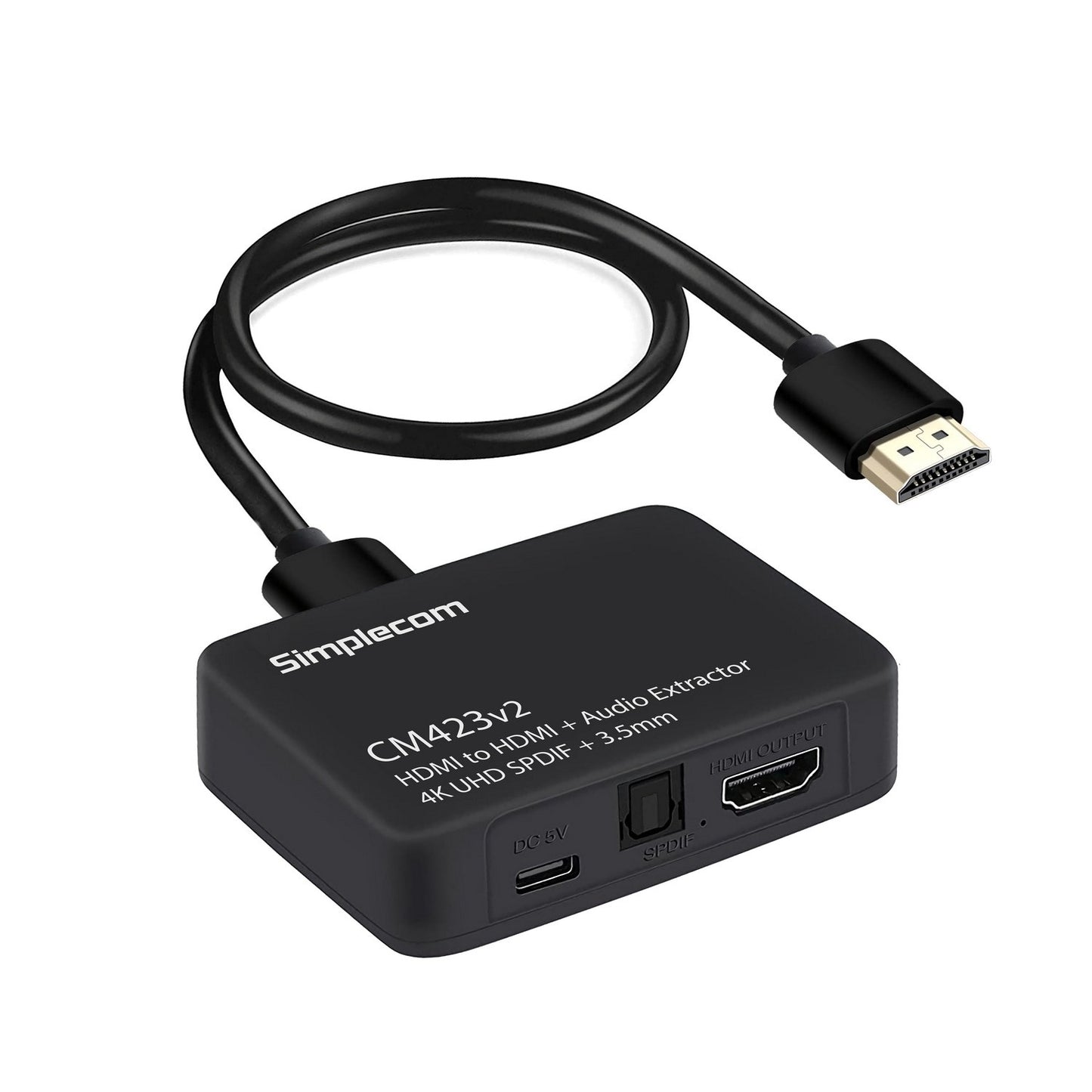

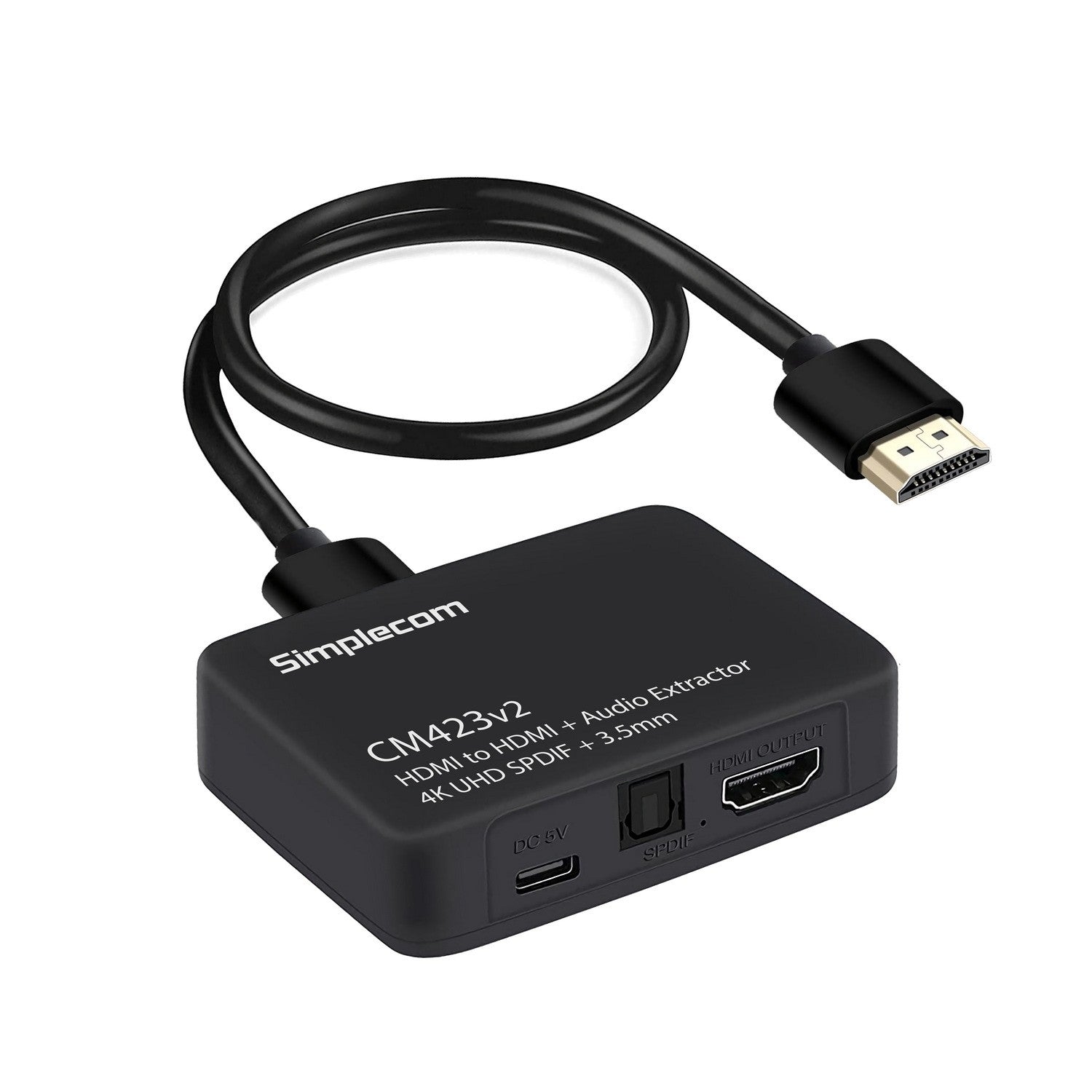

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF + 3.5mm Stereo
Features
Optical SPDIF and 3.5mm audio output extracted from HDMI input
One HDMI output for HDMI pass-through
Ideal solution for connecting external speaker system with analog or optical input
SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio
HDMI 1.4b and HDCP 1.4 Compliant
Supports HDMI resolution up to 4K Ultra HD
Powered by USB, plug and play
Supports compressed and uncompressed audio format, such as DTS-HD, Dolby TrueHD, Dolby Digital, PCM, LPCM
Specifications
HDMI Version: HDMI 1.4b
HDCP Version: HDCP 1.4
EDID Support: EDID 1.4
Input: 1x HDMI Female
Audio Outputs: 1x SPDIF (Optical), and 1 x 3.5mm Stereo Audio (Analog)
Video Output: 1x HDMI Female (HDMI pass-through)
HDMI Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Audio Format Support: DTS-HD, Dolby TrueHD, Dolby AC3, PCM, LPCM, DTS, DSD
Max Bandwidth: 400 MHz
Max Baud Rate: 10.2 Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p (TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Max working current: 350mA
Operation Temperature: -10°C ~ 50°C
Dimension: 75 x 55 x 25mm (LxWxH)
Weight: 43g
Package Contents
1x HDMI Audio Extractor
1x 0.5M HDMI Cable
1x USB Power cable
1x USB Wall Charger
1x User Manual
