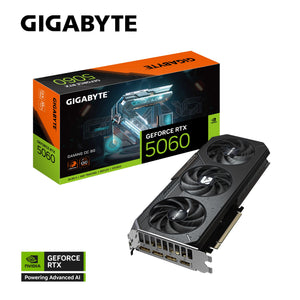

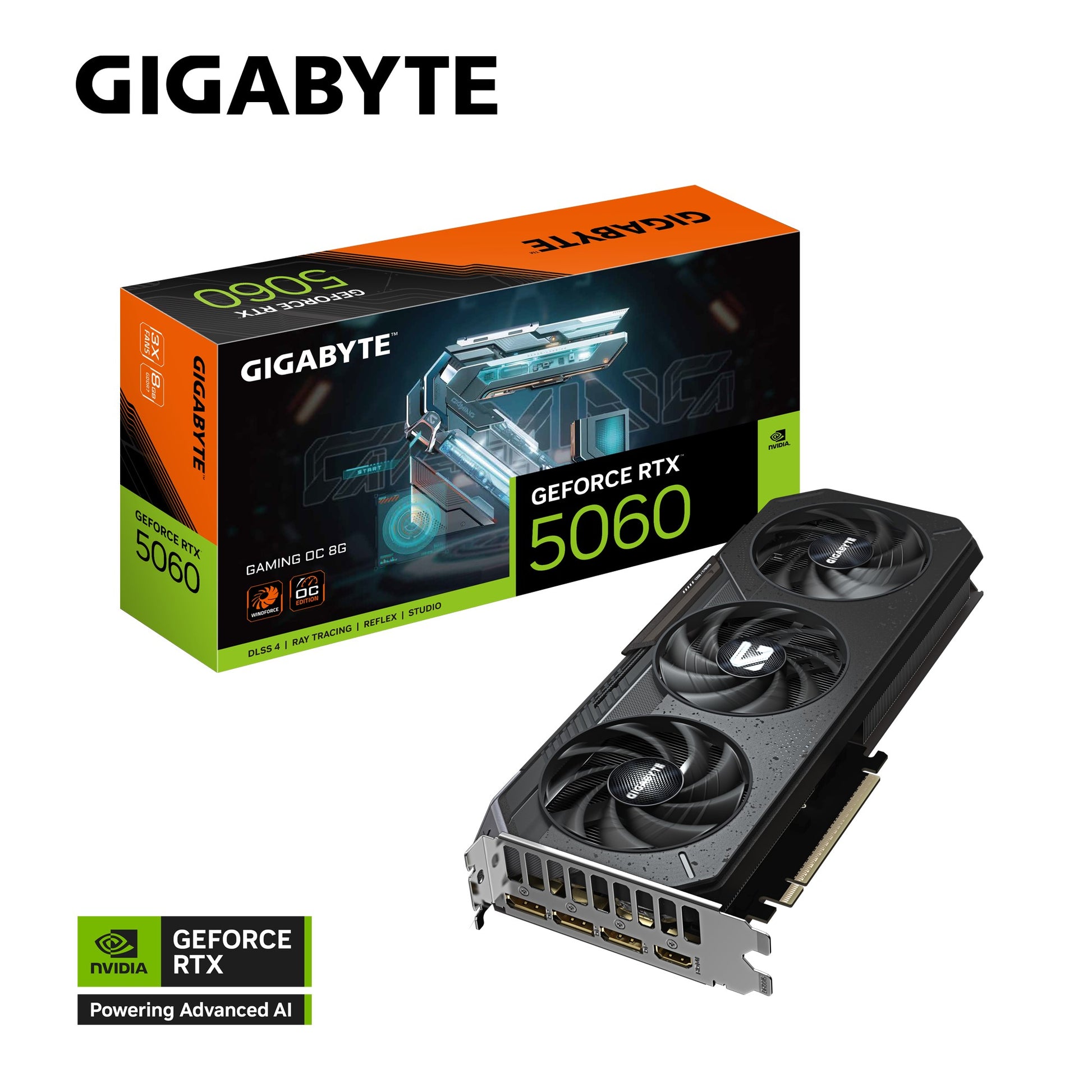

Gigabyte GeForce RTX™ 5060 GAMING OC 8G, 2595 MHz, CUDA 3840, 28 Gbps. GDDR7, 128 bit PCI-E 5.0, PSU 500W, DisplayPort 2.1b *3 HDMI 2.1b x1

Gigabyte GeForce RTX™ 5060 GAMING OC 8G, 2595 MHz, CUDA 3840, 28 Gbps. GDDR7, 128 bit PCI-E 5.0, PSU 500W, DisplayPort 2.1b *3 HDMI 2.1b x1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5060

Core Clock
2595 MHz (Reference card : 2497MHz)

CUDA® Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=281 W=119 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
500W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB lighting
Dual BIOS (Performance / Silent)
Reinforced structure

The Ultimate Platform for
Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

REINFORCED STRUCTURE
The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
