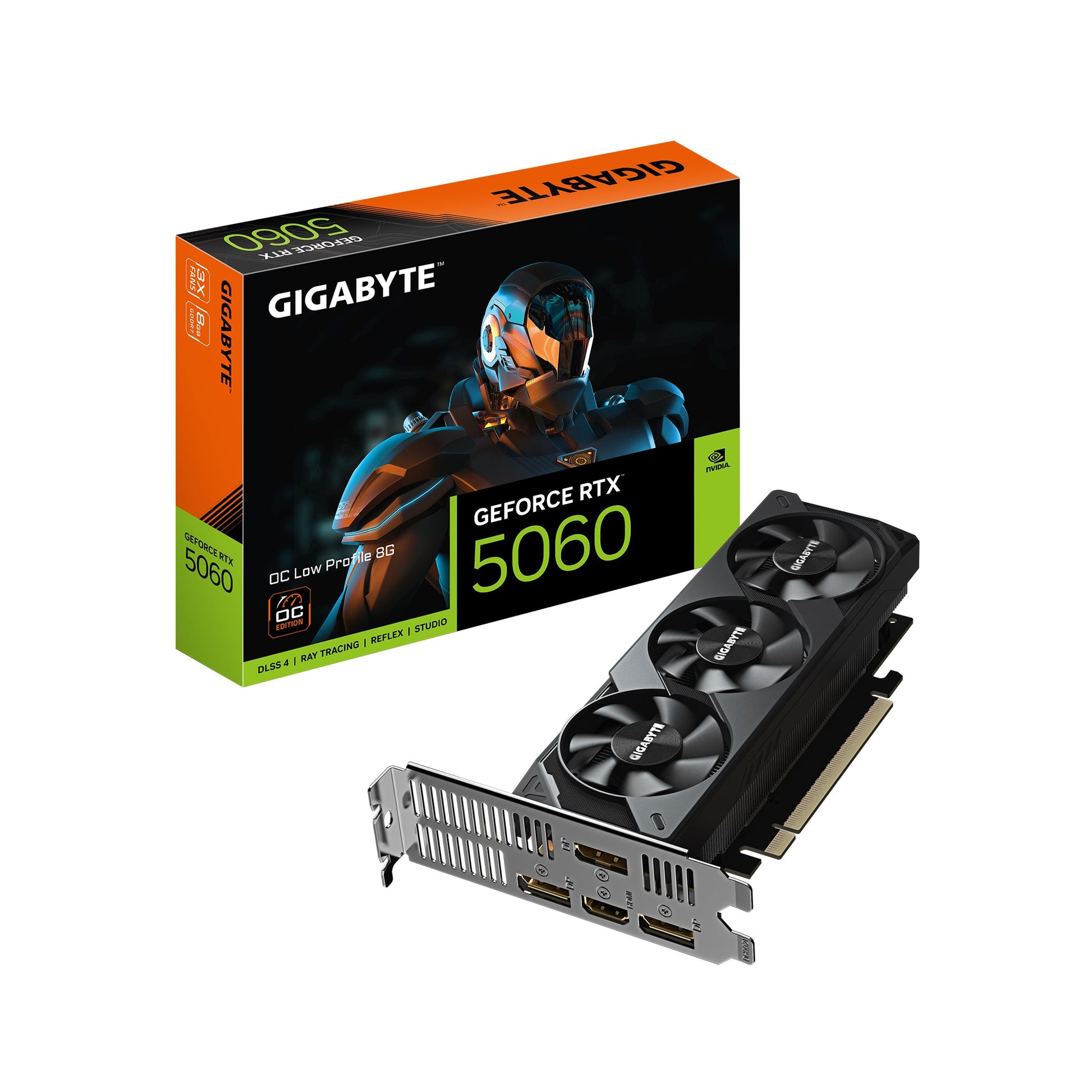

Gigabyte GeForce RTX™ 5060 OC Low Profile 8G, 2512 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 1.4a *1 HDMI 2.1b x1

Gigabyte GeForce RTX™ 5060 OC Low Profile 8G, 2512 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 1.4a *1 HDMI 2.1b x1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5060

Core Clock
2512 MHz (Reference card : 2497MHz)

CUDA® Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=182 W=69 H=36

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *2
DisplayPort 1.4a *1

HDMI 2.1b *1
Accessories
1. Quick guide
2. Low Profile Bracket

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5060
Integrated with 8GB GDDR7 128 bit memory interface
Low Profile Design with 182mm card length
Server-grade Thermal conductive gel
Graphene Nano Lubricant
Supports up to 4 displays

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

EXCELLENCE IN ESSENTIAL

LOW PROFILE DESIGN
At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.

AMPLE CONNECTIVITY
Enjoy versatile display options with three DisplayPorts and one HDMI port, supporting up to four displays simultaneously. Meets the demands of multi-display setups, high-resolution applications, and delivers an ultimate gaming performance experience.
