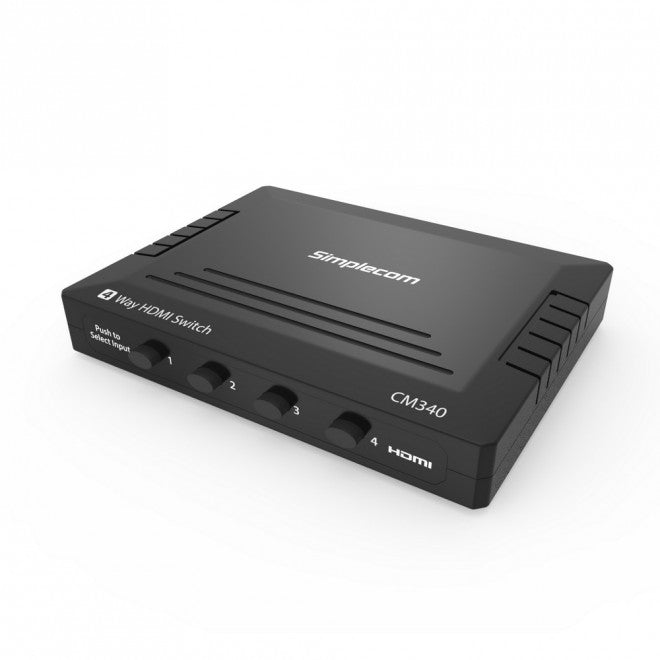

(LS) Simplecom CM340 Mechanical 4 Way HDMI Switch Box 4 Port 4K UHD HDCP

Simplecom CM340 Mechanical 4 Way Manual Push Button HDMI Switch Box 4 Port 4K UHD HDCP

With an increasing number of HDMI enabled entertainment devices becoming available, such as games consoles, DVD players and network streaming boxes, you are likely to find yourself lacking in HDMI ports with a large number of sets only possessing the one.

The Simplecom CM340 HDMI Switch Box solves this problem by allowing 4 HDMI sources to be connected to a single HDMI port on a HDTV. Switching between the 4 devices is then made easy by the front control buttons so you no long have to spend ages, fiddling with wires behind your TV.

HDCP Compatible, thanks to mechanical switch design without re-processing of the HDMI signal, the TV will get the original signal directly from HDMI sources by switching physical pins of HDMI port, which will overcome interference and incompatibility issue caused by processor chip based HDMI switch, especially for HDCP protected contents such as Foxtel, Apple TV.

Features

Mechanical HDMI Switch without re-processing of the HDMI signal
No processor chip inside and does not consume power
4 x HDMI Inputs, 1 x HDMI Output
Manual switching HDMI inputs via front 4 buttons
Plug and play, no external power required
Support both compressed or uncompressed audio
HDCP Compatible, support HDCP protected contents such as Foxtel, Apple TV, Fetch TV and more paid contents
Support multiple switches link to get more HDMI inputs, e.g. link 2 switches together to get total 7 HDMI inputs effectively
Specifications

Color: Black
HDMI Version: 1.4
HDCP Compliance: Yes
Remote Control: No
Switch Mode: Manual (via 4 Push Buttons)
Resolutions Support: 576i, 576p, 720i, 720p, 1080i, 1080p, 4K@30Hz
Uncompressed audio Support: LPCM
Compressed audio Support: DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
Dimension: 154mm (W) x 118mm (D) x 23mm (H)
Note

For stable connection, the total cable length from the source to the terminal
