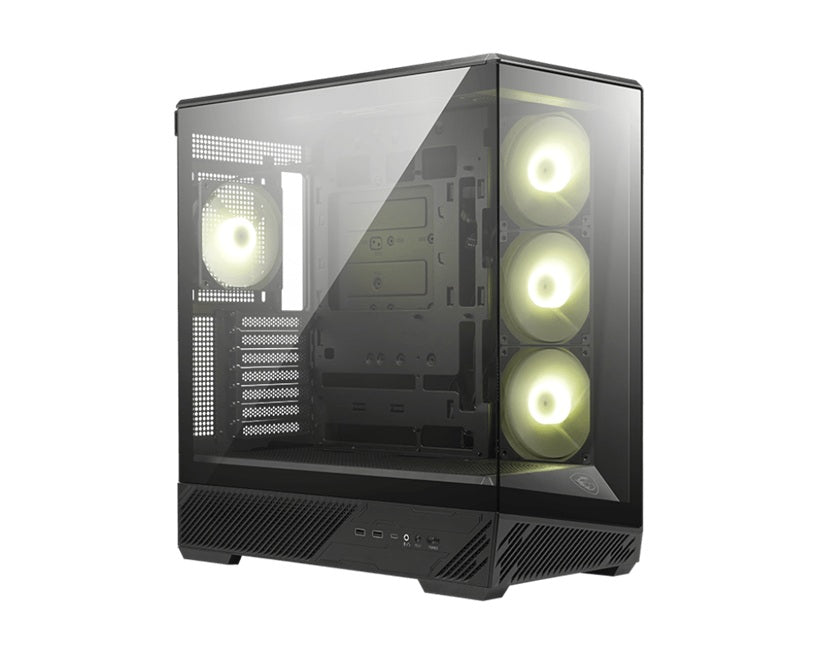

MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg

MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg
$203.50 AUD
$203.50 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:MAG PANO 130R PZ

Availability : Low stock: 4 left
In Stock MSI
View Product details
product-img
MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg
$203.50 AUD
$203.50 AUD
Tax included. Shipping calculated at checkout.

MSI MAG PANO 130R PZ -BLACK – ATX/mATX/ITX, 400mm GPU, 165mm CPU, 7 slots, 6×120mm, 360 rad top/side, 2×USB-A, 1×USB-C 20Gbps, 460×232×490mm, 8.37kg

FEATURES
Support Back Back-Connect ATX Motherboard
Compatible with ATX PROJECT ZERO motherboards, allowing easy installation and streamlined cable management by routing cables through the rear.

Upgrade Airflow Layout
This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.

Rotatable PCIe Bracket
One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.

Dust Filter
Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup

Pre build with Reverse Blades Fan
installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.

SPECIFICATIONS
Product Name: MAG PANO 130R PZ / BLACK
Case Form Factor: Mid-Tower
Motherboard Form Factor Support: Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX
I/O Ports: 2 x USB 5Gbps (Type-A)
1 x USB 20Gbps (Type-C)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button
Drive Mount Support: Up to 3 x 2.5' SSD
Up to 2 x 3.5' HDD
(Maximum of 3 drives can be mounted at once, depending on configuration)
Expansion Slots: 7
Maximum GPU Length: 400 mm / 15.75 inches
Maximum CPU Cooler Height: 165 mm / 6.50 inches
Power Supply Support: ATX
Maximum PSU Length: 180 mm / 7.09 inches
Fan Size Support: Top: 3 x 120 mm / 2 x 140 mm
Front: N/A
Rear: 1 x 120 mm
Side: 3 x 120 mm
Bottom: 3 x 120 mm (Above the power shroud)
Pre-installed Fan Type: Rear: 1 x 120 mm ARGB Fan
Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan)
Radiator Size Support: Top: 120 / 140 / 240 / 280 / 360 mm
Front: N/A
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: N/A
Dimensions (DxWxH): 460 x 232 x 490 mm / 18.11 x 9.25 x
19.29 inches
Net Weight: Black: 8.37 kg / 18.45 lbs
Gross Weight: Black: 10 kg / 22.04 lbs
