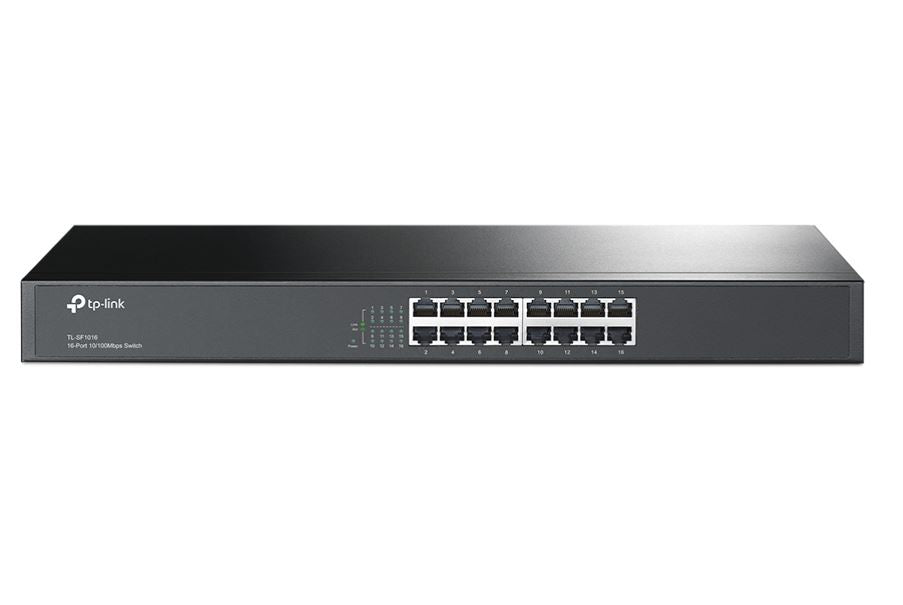

TP-Link TL-SF1016 16-Port 10/100Mbps Rackmount Switch MAC MDI/MDIX Steel Case
16 10/100Mbps RJ45 ports
Innovative energy-efficient technology saves power up to 75%
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case
What This Product Does
The 16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network.
All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.
Moreover, with the innovative energy-efficient technology, the TL-SF1016 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 16 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 2.23W (220V/50Hz)
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
PERFORMANCE
Switching Capacity 3.2Gbps
Packet Forwarding Rate 2.38Mpps
MAC Address Table 8K
Buffer Memory 2Mb
Green Technology Innovative energy-efficient technology saves power up to 70%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 16-Port 10/100Mbps Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
