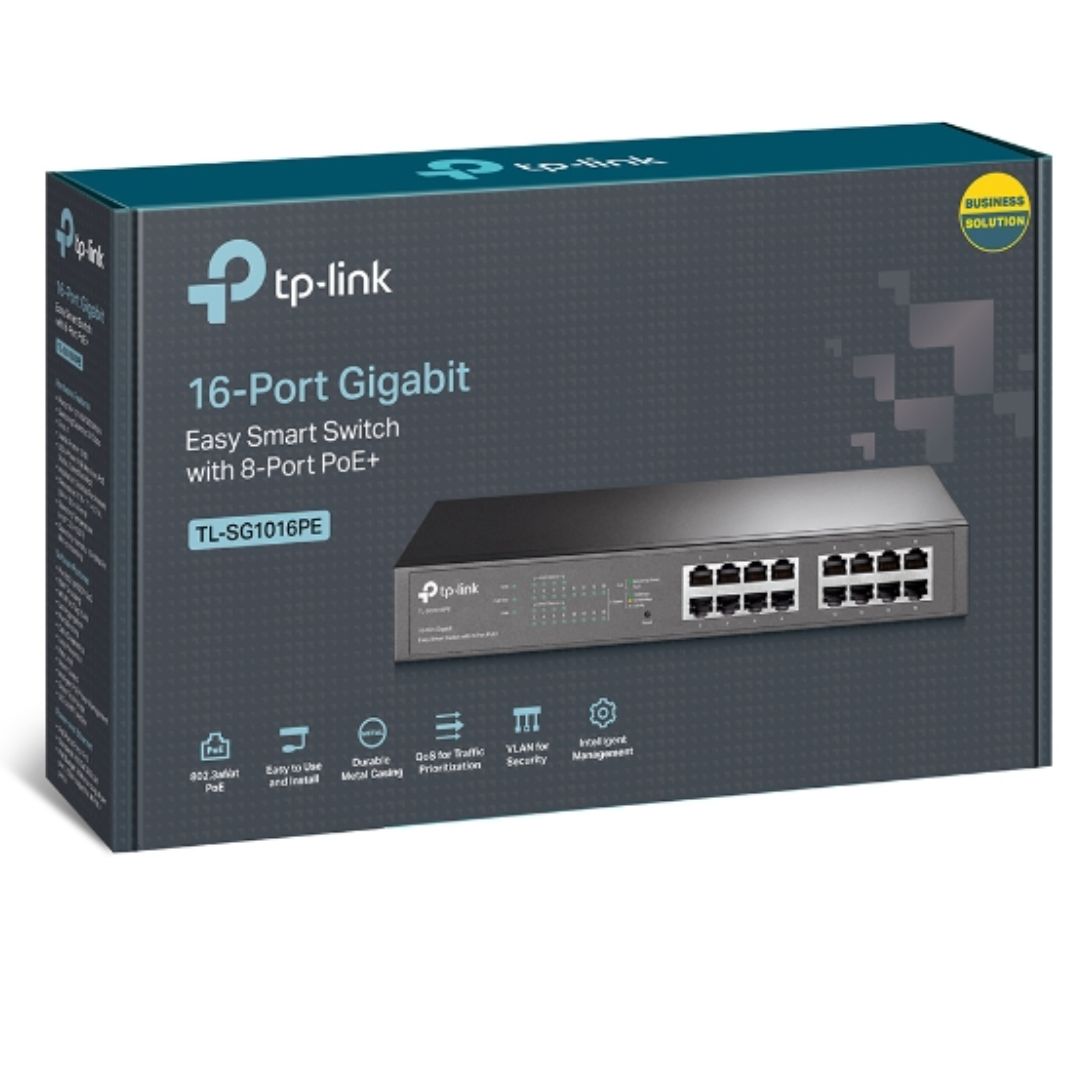

16-Port Gigabit Easy Smart Switch with 8-Port PoE+
16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power output by up to 75%*
Plug and play design, no configuration required
*Actual data may vary in different usage environment.
HARDWARE FEATURES
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum (PoE on): 124.4W (220V/50Hz)
Maximum (PoE off): 14.4W (220V/50Hz)
PoE+ Ports(RJ45) 8 Ports
Backbound Bandwidth 32 Gbps
Mac Address Table 8K
Buffer Size 1.5 Mbits
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
SOFTWARE FEATURES
Transfer Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
