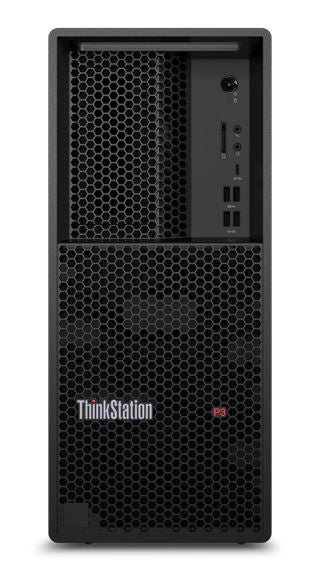

LENOVO ThinkStation P3 Tower Intel vPro i7-14700K 32GB DDR5 1TB SSD+1TB HDD Windows 11 PRO RTX 2000 3yr Premier 750W PSU 2xDP HDMI USB-C 1GbE 8xUSB KBM
PERFORMANCE
Processor Intel® Core™ i7-14700K, 20C (8P + 12E) / 28T, Max Turbo up to 5.6GHz, P-core 3.4 / 5.5GHz, E-core 2.5 / 4.3GHz, 33MB
Processor Sockets 1x FCLGA1700
Integrated Graphics Integrated Intel® UHD Graphics 770
Discrete Graphics 1x NVIDIA® RTX 2000 Ada Generation 16GB
Chipset Intel® W680 Chipset
Memory 2x 16GB UDIMM DDR5-4400 Non-ECC
Memory Slots 4 DDR5 DIMM slots, 2 channels capable
Max Memory Up to 128GB (4x 32GB DDR5 UDIMM)
PCIe NVMe Controller Integrated NVMe® Controller
PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal
SATA Controller Onboard Intel® RSTe SATA RAID
SATA/SAS Drive 1x 1TB HDD 7200rpm 3.5' SATA6Gb/s
Storage Support Up to five drives (4x HDD + 1x M.2 SSD) or six drives (3x HDD + 3x M.2 SSD) • 3.5' HDD up to 6TB each • 2.5' HDD up to 1TB each • M.2 SSD up to 4TB or 2TB each (see Storage Type)
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Power Supply 750W Platinum Fixed
DESIGN
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots Supports four PCIe® slots with two PCIe 4.0 x16 and two PCIe 3.0 x1. • Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width • Slot 2: PCIe 3.0 x1, full height, half length, 25W • Slot 3: PCIe 4.0 x16 (x4 lanes), full height, half length, 25W • Slot 4: PCIe 3.0 x1, full height, half length, 25W
Bays Up to four disk bays: • Bay 1 supports one 3.5' / 2.5' drive, standard • Bay 2 supports one 3.5' / 2.5' drive, optional • Bay 3 supports one 3.5' / 2.5' drive, optional • Bay 4 supports one 3.5' / 2.5' drive, optional • Front Access HDD Bay supports one 3.5' / 2.5' drive, optional, occupies Bay 3 location
Dimensions (WxDxH) 180 x 370 x 415 mm (7.09 x 14.57 x 16.34 inches)
Weight 13.61 kg (30.0. lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet Intel® I219-LM, 1x GbE RJ-45
Optional Ethernet None
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.1, vPro®
Card Reader None
Front Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
2x DisplayPort™ 1.4
1x Ethernet (RJ-45)
1x line-out (3.5mm)
Optional Rear Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Cover Lock None
Cable Lock No Cable
Chassis Intrusion Switch None
MANAGEABILITY
System Management Intel® vPro® Enterprise with Intel AMT 16
SERVICE
Base Warranty 3-year
