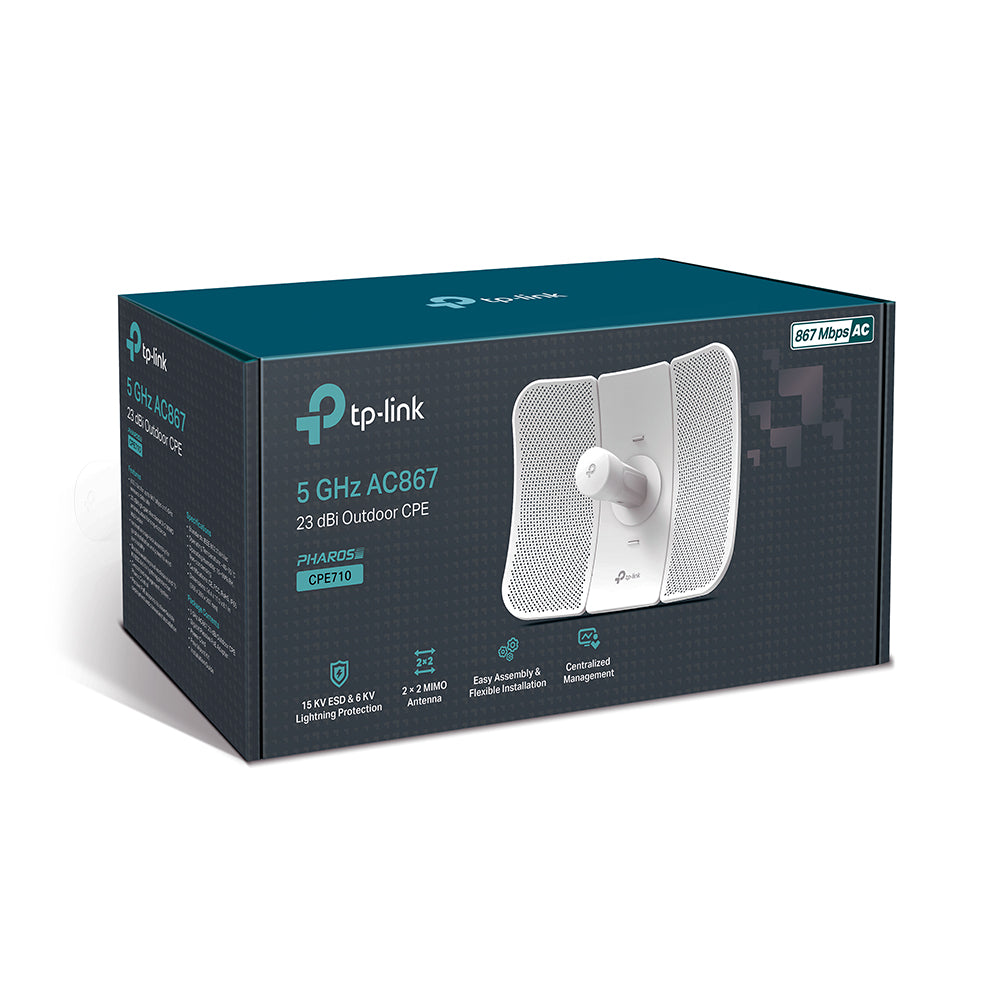

TP-Link CPE710 5GHz AC 867Mbps 23dBi High-gain Directional Outdoor CPE, IP65 Weather Proof, Lightning Protection, Passive POE, Centralised Management

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

• 802.11ac for up to 867Mbps on 5GHz wireless data rate
• 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation
• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation

HARDWARE FEATURES
Processor Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain 23 dBi
Antenna Beamwidth 9° (Azimuth)/7° (Elevation)
Protection 15 KV ESD Protection
6 KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac
Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frequency 5.15~5.85 GHz
Transmit Power Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8×43.9×29.7 mm
